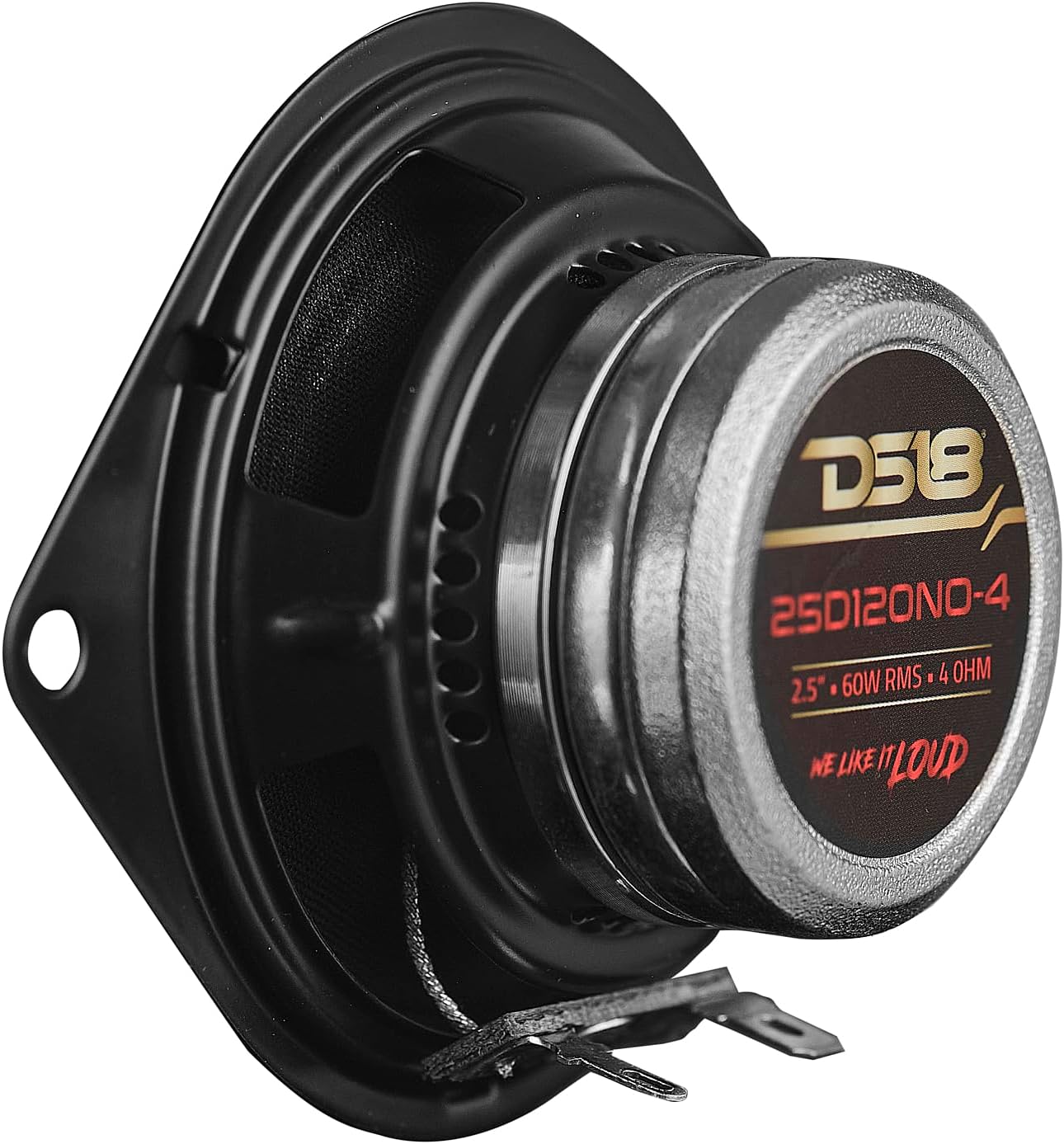

DS18 25D120NO-4 2.5″ OEM Dashboard Loudspeaker 4 Ohm with Neodymium Magnet, OEM Speakers Great for Dashboards, Universal Fit

Price: [price_with_discount]
(as of [price_update_date] – Details)
[ad_1]
Upgrade your car audio with DS18’s 25D120NO-4 2.5” dashboard loudspeaker. Featuring a neodymium magnet, 60W RMS power, and 89dB sensitivity, this OEM-fit speaker delivers crisp, distortion-free sound with a 200Hz-20KHz frequency range. Easy to install, durable, and perfect for balanced highs and mids. Transform your driving experience today
2.5″ Loudspeaker
O.E.M. Dashboard Location
RMS Power: 60 Watts(120 W Max)
4 Ohm
Neodymium Magnet ~ 89dB
Pair
Specifications
SKU: 25D120N0-4
Nominal Diameter: 2.5″ (63.5mm)
Impedance: 4 Ohms
RMS Power: 60W
Max Power: 120W
Sensitivity (1W/1m): 89dB
Frequency Response: 200Hz – 20KHz
Recommended High-Pass Crossover: 250Hz
Sold As: Pair
Grill Included: No
Cone Shape: Curvilinear
Speaker Terminals: Regular Spade
Motor
Voice Coil Diameter: 0.5″ (13.2mm)
Voice Coil Former: KSV
Winding Material: CCAW
Cone Material: Paper
Dust Cap Material: PPI
Surround Material: Cloth
Spider Diameter: 1.67″ (42.5mm)
Lead Connection: Direct to Cone
Basket Material: Steel
Basket Color/Finish: Black
Magnet Material: Neodymium
Thiele & Small Parameters
Equivalent Volume (Vas): 0.38L (0.0134ft³)
Free Air Resonance (Fs): 235Hz
Mechanical Q (Qms): 5.96
Electrical Q (Qes): 3.33
Total Q (Qts): 2.14
Mechanical Mass (Mms): 0.71g
Mechanical Compliance (Cms): 0.64mm/N
BL Factor: 1.86
Voice Coil Inductance (Le): 0.04mH
Cone Area (Sd): 20.43cm²
DC Resistance (Re): 3.8 Ohms
Mechanical Mass w/o Air (Mmd): 0.6g

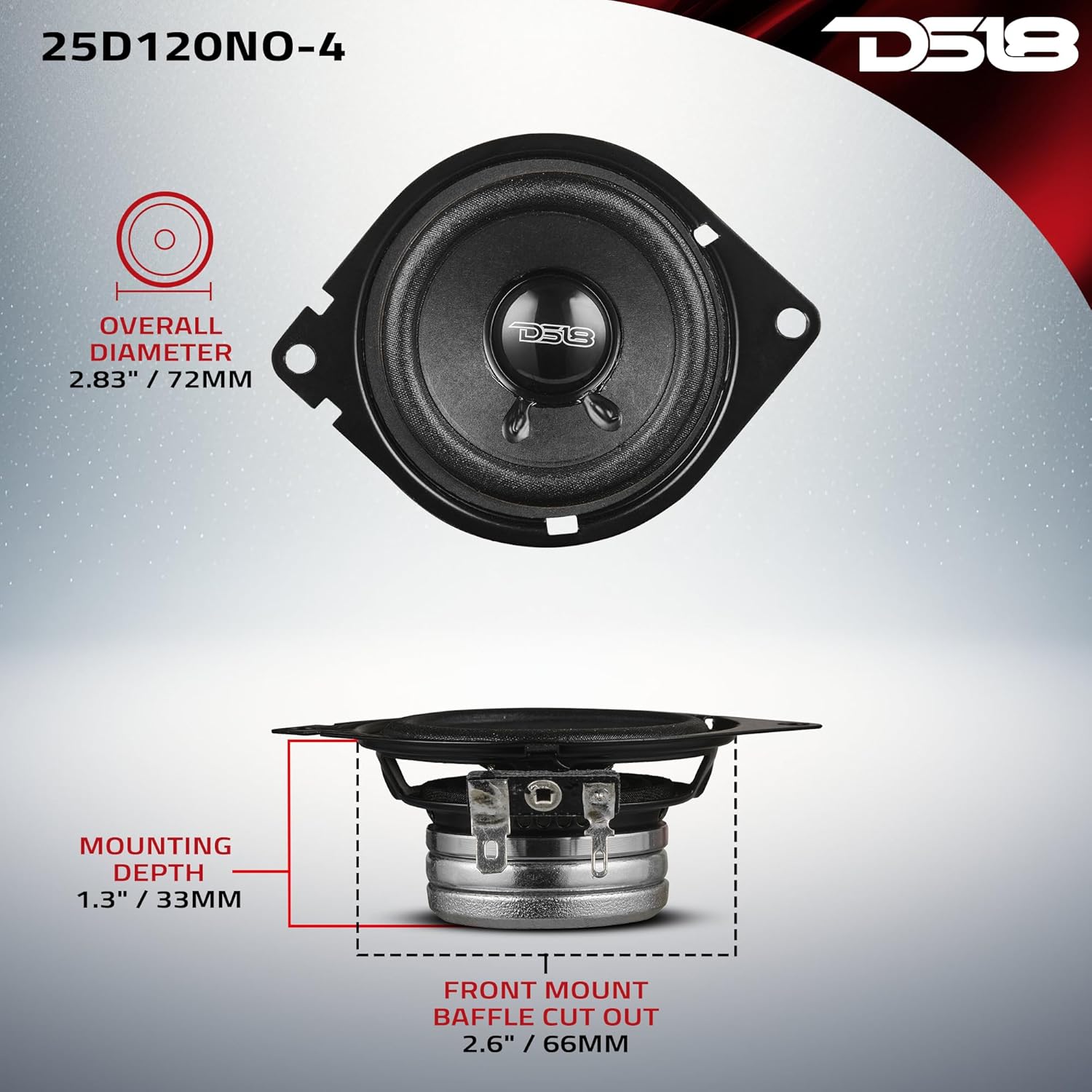

Dimensions
Overall Diameter: 2.83″ (72mm)
Overall Depth: 1.34″ (33mm)
Front Mount Baffle Cutout: 2.6″ (66mm)
Mounting Depth: 1.3″ (33mm)
Motor Diameter: 1.65″ (42mm)
Product Dimensions ‏ : ‎ 3.4 x 7.19 x 7.19 cm; 453.59 g
Date First Available ‏ : ‎ 7 February 2025
Manufacturer ‏ : ‎ DS18
ASIN ‏ : ‎ B0DWG37J4T
Item model number ‏ : ‎ 25D120NO-4
Crisp, Clear Sound with Neodymium Magnet: The DS18 25D120NO-4 2.5” dashboard loudspeaker features a high-performance neodymium magnet for powerful magnetic fields, delivering crisp, clear sound reproduction and superior audio quality for your car
Efficient Power Handling for Dynamic Audio: With 60W RMS and 120W max power handling, this speaker delivers dynamic, distortion-free sound even at high volumes. Its 89dB sensitivity ensures high output with minimal power input, perfect for an immersive driving experience
Wide Frequency Range for Balanced Sound: Enjoy a frequency range of 200Hz-20KHz, providing balanced highs and mids that enhance your music and transform your driving soundtrack into a premium audio experience

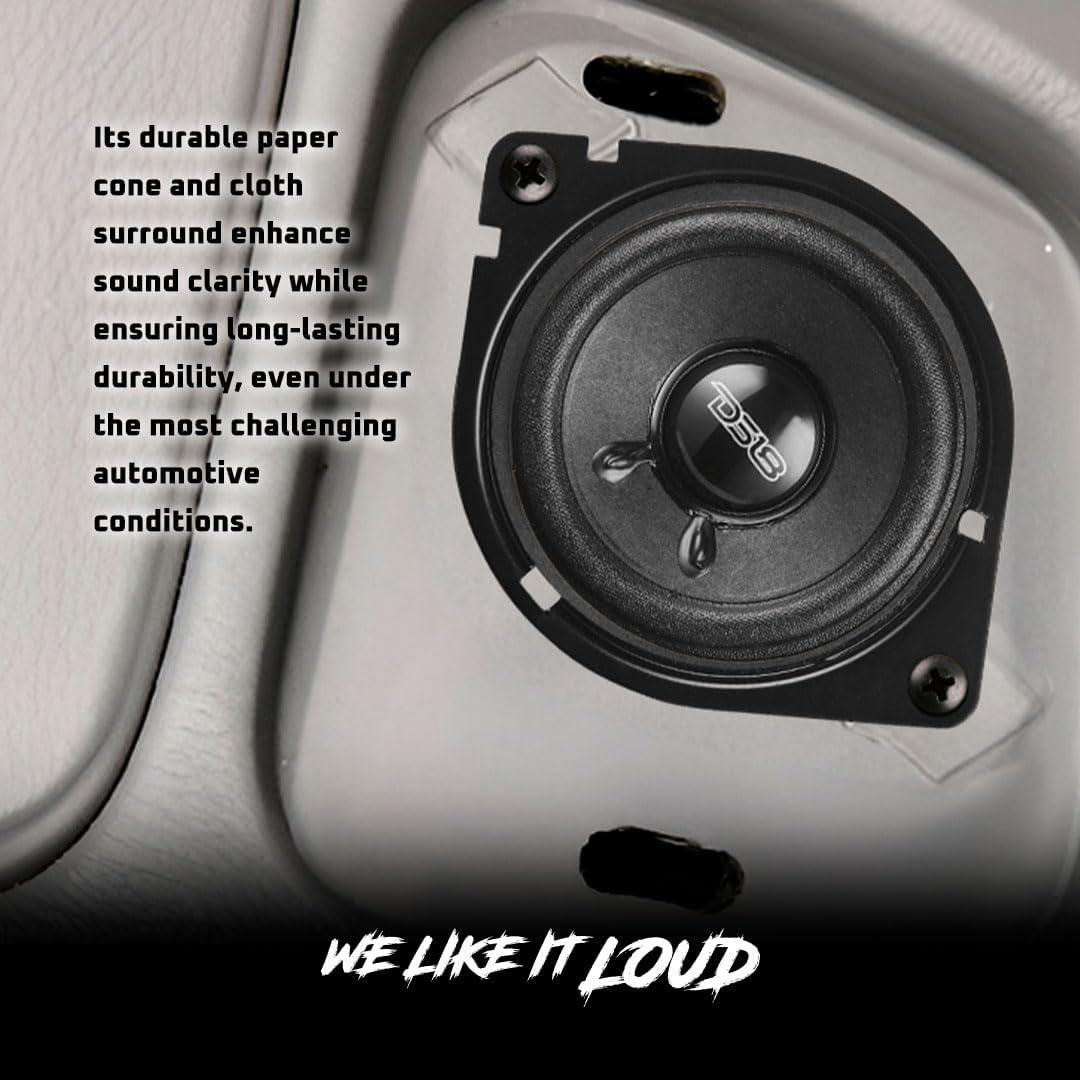

Durable & Easy to Install: Built with a durable paper cone and cloth surround, the 25D120NO-4 is designed to withstand challenging automotive conditions. Its lightweight, compact design and regular spade terminal make installation quick and hassle-free
Optimized Performance for OEM Dashboards: Engineered to seamlessly fit OEM dashboards, this 2.5” loudspeaker offers a precise upgrade without modifications. The 4-ohm KSV voice coil with CCAW winding ensures efficient energy transmission for superior sound quality
